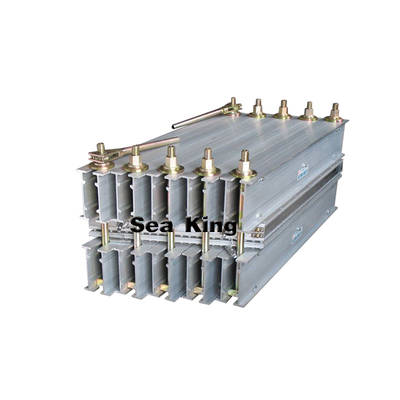

Factory Heavy Duty Conveyor Belt Belt Rubber Hot Press Splicing Vulcanizing Machine

1 Set
MOQ
Factory Heavy Duty Conveyor Belt Belt Rubber Hot Press Splicing Vulcanizing Machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Type: Vulcanizer
Condition: New
Tire Machine Type: Other Tire Machine
Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V.
Dimension(L*W*H): 1142x840x560-3860x840x980
Year: 2020
Warranty: 3 years
Key Selling Points: Automatic
Power (kW): 41 kW
Weight (KG): 3003 KG
Applicable Industries: Manufacturing Plant
Showroom Location: None
After-sales Service Provided: Field maintenance and repair service
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Zertifizierung: ce
Vulcanizing pressure: 0.6~1.2 MPa (6~12kg / cm2) (Determined by detailed rubber belts)
Vulcanizing temperature: 145°C (adjustable 0~200°C).
Temperature-rising time: no more than 35 min.
Grundinformation
Zertifizierung: ce
Zahlung und Versand AGB
Packaging Details: Wooden Case and Stretch Film
Supply Ability: 30 Set/Sets per Month
Produkt-Beschreibung

Heavy Duty Belt Rubber Conveyor Belt Hot Splicing Vulcanizing Press Machine

Product Description

Model

Heating plate size LxW

Width of the belt

Total Power (KW)

Weight of the heaviest part

Dimension

(LxWxH)

Total Weight

Pressure Pump

Control Box

EPN-650

840x838

650

8.3

45.5

1142x840x560

420

1

1

EPN-800

840x989

800

9.7

53.8

1320x840x560

530

1

1

EPN-1000

840x1190

1000

13.5

66.5

1440x840x560

582

1

1

EPN-1000

1000x1190

1000

16

69.

1440x1000x560

701

1

1

EPN-1200

840x1420

1200

16.2

79.

1680x840x720

750

1

1

EPN-1200

1000x1420

1200

19

95.

1680x1000x720

903

1

1

EPN-1400

840x1640

1400

18.6

91.2

1950x840x720

911

1

1

EPN-1400

1200x1640

1400

26.7

130

1950x1200x720

1350

1

1

EPN-1600

840x1810

1600

20.5

100

2060x840x760

1056

1

1

EPN-1600

1000x1810

1600

24.6

121

2060x1000x760

1350

1

1

EPN-1800

840x2078

1800

23.8

116.

2320x840x980

1380

1

1

EPN-2000

840x2328

2000

26.6

129.

2582x840x980

1780

1

1

EPN-2200

840x2540

2200

29

141.

2842x840x980

2210

1

1

EPN-2200

1000x2540

2200

34.5

170

2842x1000x980

2580

1

1

EPN-2400

840x2750

2400

26.2

157

2950x840x980

2430

1

1

EPN-2600

840x2940

2600

31

163

3128x840x980

2552

1

1

EPN-2800

840x3139

2800

36

185

3410x840x980

2686

1

1

EPN-3000

840x3350

3000

38.5

196

3628x840x980

2823

1

1

EPN-3200

840x3565

3200

41

210

3860x840x980

3003

1

1

Features

1.Power Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V.

2.Vulcanizing pressure: 0.6~1.2 MPa (6~12kg / cm2) (Determined by detailed rubber belts) Other vulcanizing pressure can also be available at negotiated price.

3.Vulcanizing temperature: 145°C (adjustable 0~200°C).

4.Temperature-rising time (from normal temperature to vulcanizing temperature).

5.Time of heat preservation for vulcanizing could be adjusted according to thickness of rubber belt.

Product Display

Application

Packaging & Shipping

Company Information

Qingdao Sea King Machinery Co., Ltd. is located in the west coast of qingdao,is one of the most famous rubber machinery manufacturers.We have been specializing in rubber machinery for more than 30 years. The company has passed ISO9001:2008 certification,ce certification,sgs certification,france bv certification. The main product of our company: internal mixer, two roll mixing mill ,extruding equipments,calendar equipments,cutting machine,cooling equipment,vulcanizing equipment,and reclaimed rubber production line,rubber sheet extrusion line,motorcycle&bicycle tube &tires production line,conveyor belt production line, v belt production line,rubber recap equipment and so on. Besides, we also can base on clients' requirement to manufacture and design non-standard rubber machinery. With the rapid development of our company, qingdao sea king industrial limited was founded. The company has established good commercial relationship with many companies in china by joint venture holding. Products include rubber machine ,raw rubber material rubber products and so on. Our company has import-export rights. the products have been exported to many countries and districts around the world, such as america, france, canada, dubai,australia,peru,brazil,ecuador ,southamerican,southeast asia, and the middle east. By the advanced quality and service, our products have gained the praise of domestic and foreign customers. We strictly follow the policy"to satisfy our clients' need with quality work ,advanced technology,optimized design solution and excellent service".

FAQ

Q: Are you Factory or Trading company?

A: We are a factory with over than 30 years of experience in Rubber Machine.

Factory Add:No,210 Tieshan Road, Jiaonan , Qingdao , China.

Welcome you come to visit our factory,we will arrange schedule and book hotel for you.

Q: Why customer choose SeaKing Machinery?

A: 3-5 Years warranty; Brand of strength; 30 years experience; Perfect Quality Management System,All prats Self-producing,No middlemen in the production process.

Q: What's your delivery times?

A: The delivery time is 20-45 days after order be confirmed. For the exact date,please check with our sales team.

Q: What's your After-sale Service?

A: 3-5 Years warranty, 30 peoples After-sales team keep working in 24 hours,Provide overseas service.

Q: What's your Payment terms?

A: 30% T/T deposit in advance, then balance the rest 70% before loading.
